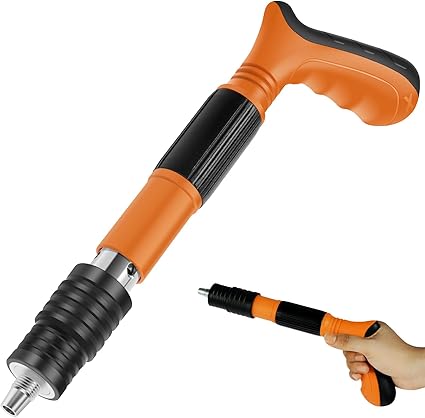

Steel Mini Nail Wall Fastening Tool
Features

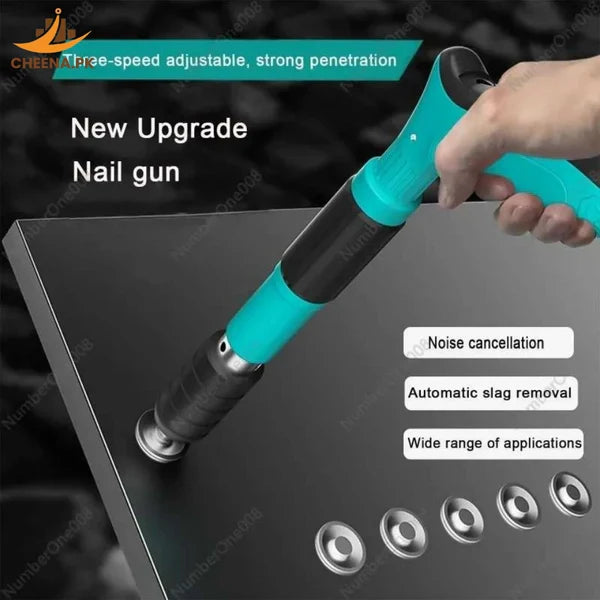

-Adjustable strength: 5-speed adjustable, controllable power, strong penetration, labor-saving, and convenient to use.
-Industrial grade spring, after high-temperature heat treatment, makes the spring structure sturdy and has strong elasticity without deformation.
-Dual silencer, thickened wear-resistant noise reduction cover: silent noise reduction, low noise during operation.
-Automatic slag discharge hole, high hardness, thickened and durable, automatically removes gunpowder residue and heat, with reliable safety performance..
-Not easily stuck nails, manual steel nail gun tools use alloy needles, even if continuously nailed, they are not easily stuck nails.
-Ergonomic handle: Anti slip handle designed in accordance with ergonomics, comfortable to grip, effective oil and anti slip.
-Compact and convenient in structure, light in weight, small in size, can be operated with one hand, equipped with a plastic box, making it easy to carry machines and nails.
-The manual steel nail gun tool is suitable for red brick walls, concrete walls, 5mm aluminum alloy conduits, and thick wooden boards. Ceiling nails, etc
Specifications
Name: Manual Steel Nail Fixing Gun Tool
Color: Blue

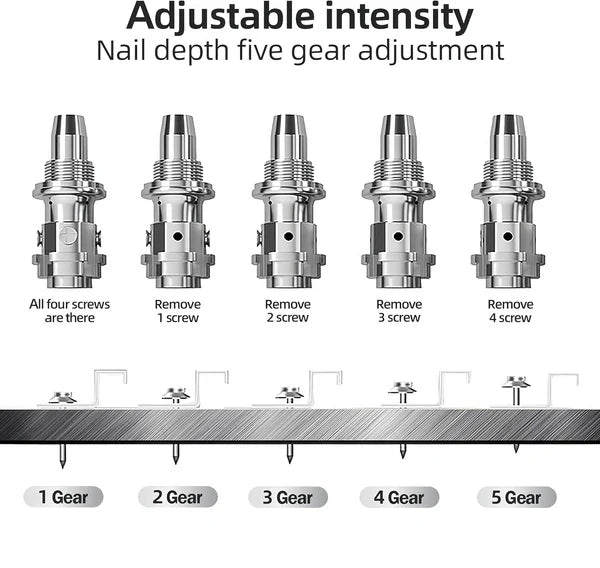

Gear: 5-speed adjustable
Material: ABS+metal

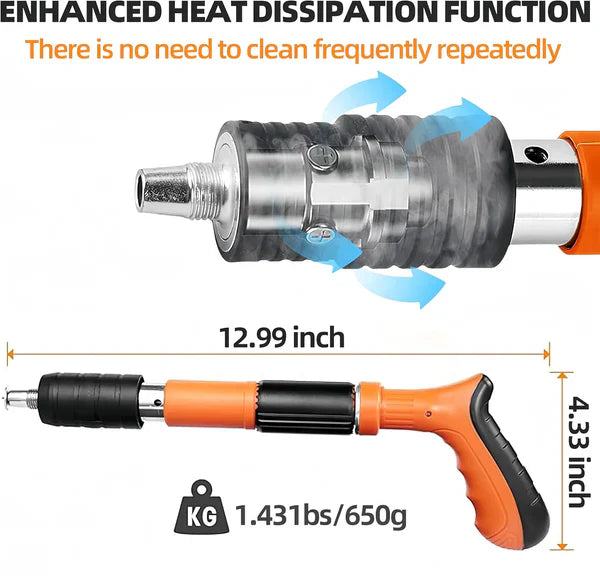

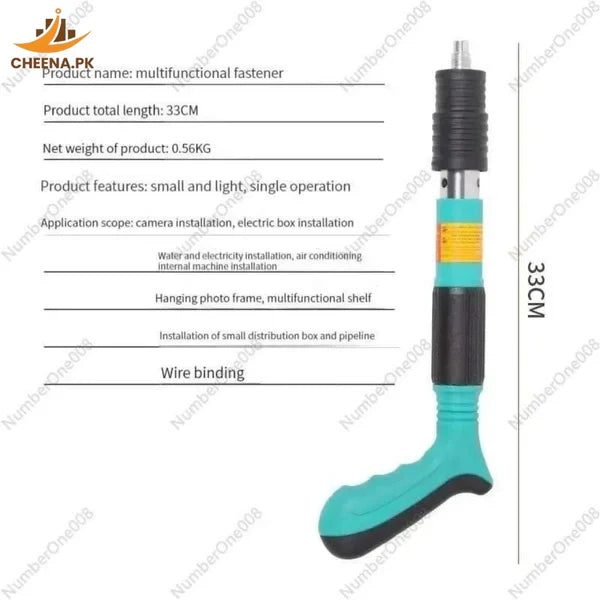

Product size: 335 * 110 * 37mm/13.2 * 4.33 * 1.46in
Product weight: 0.6KG
Packaging weight: 1.6KG
Packaging size: 38.5 * 27.3 * 7.2 cm/15.16 * 10.75 * 2.83 inches

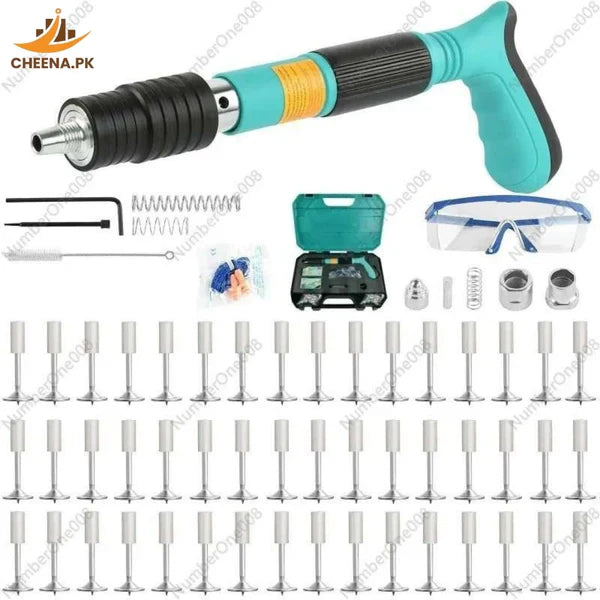

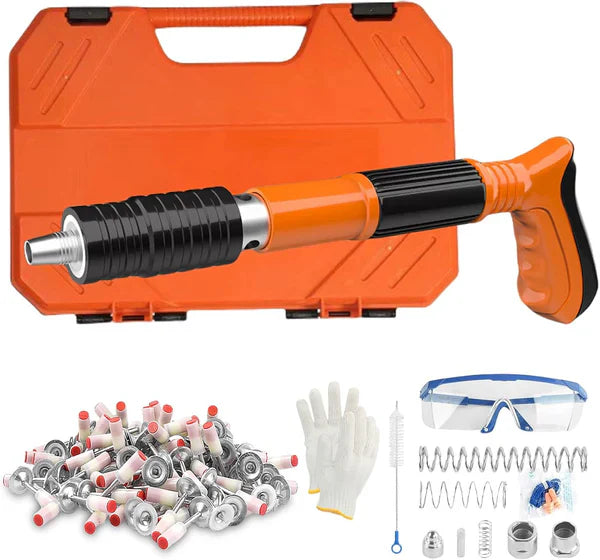

Packaging list
1 * Manually fix the nail gun
2 * Converter
1 * Accessories package
1 * Cleaning brush
1 * A pair of protective glasses
1 * Storage box

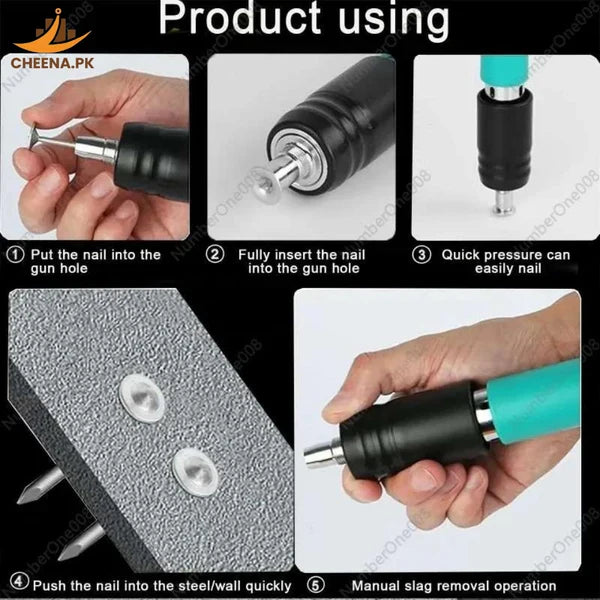

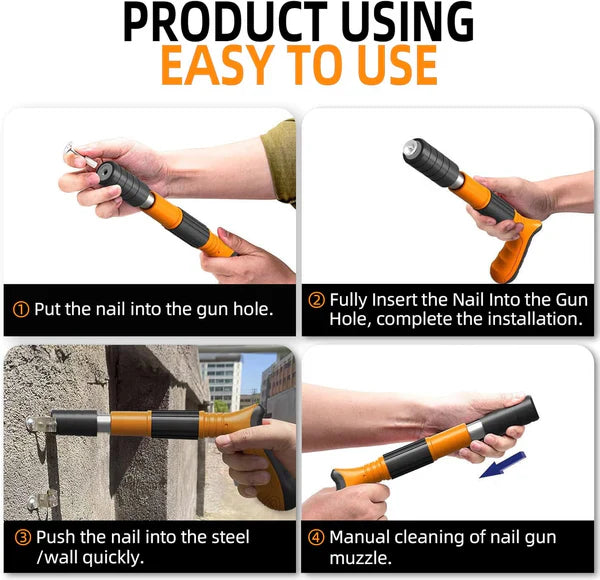

Operating instructions
① : Take out the nail gun head, install the connecting rod according to the required height, and install the dust cover
② : Take out the nails used, tilt the nail gun upwards by 45 degrees (it is strictly prohibited to have the gun mouth facing people), and install the nails. When installing, the nail tip should be facing outward, and ensure that the nails are installed to the specified depth (referring to the fact that the back end of the nails is completely buried in the gun body, except for the 42 fire nails).
③ : Press the muzzle tightly towards the fastening position of the nail, hold the rod vertically, and push the nail vertically to drive the nail.
④：After the nailing is completed, tilt the gun head upwards by 45 degrees and retract the nail (it is strictly prohibited to use the gun mouth towards people). maintenance
Cleaning cycle
① After tightening and striking about 100 times, use a tool to remove the muffler sleeve and perform residue cleaning work.
② Standard maintenance interval: After tightening and striking about 200 times, use a tool to disassemble the retainer, clean the residue of each part, and wipe it off.
③ After each working day of use (regardless of whether the maintenance cycle has been reached or not), carry out the "Disassembly and Assembly" procedure and clean the internal and external parts of the retainer for maintenance.
In use maintenance
If the movable sleeve of the nail fixing device is found to be inflexible or inconvenient to retract during use, the components should be checked for damage. If it is damaged, it needs to be replaced in a timely manner. Damaged parts cannot be reinstalled on the nail fixing device for further use to prevent work safety accidents or damage to other parts. When the gun body overheats and affects its grip and use, it should be temporarily suspended and cooled before use.
Precautions for using gun nail guns
⑴：Before use, it is necessary to carefully read the instructions
⑵: It is strictly prohibited to press the top pipe with hands when the fixing device has nails
⑶: It is strictly prohibited to aim the nail gun into the nail hole at oneself or others
⑷: It is strictly prohibited to use both hands to simultaneously fasten and press the nail tube
⑸: It is strictly prohibited to not hold the sliding sleeve with one hand during nailing
⑹: It is strictly prohibited to use fixtures in places with flammable and explosive materials
⑺: Non staff and minors are not allowed to use this product
⑻: After the retainer is stopped, maintained, disassembled, and wiped, there should be no integral nails in the retainer
⑼: Users must wear protective equipment: protective gloves, impact resistant goggles, and construction caps
⑽: During the fastening operation of the fixture, the original dust cover must be used to prevent materials from flying on the working surface
⑾: Users must wear gloves, construction hats, goggles, and earmuffs
⑿: When using, try to place the nail driver perpendicular to the substrate plane and then push the nail driver with force
⒀: Remember to retract the nail every time you use it
⒁: Do not compress the nail tube with the palm of your hand during use
⒂: Under no circumstances is it allowed to align the nail mouth with oneself or others
⒃: It is recommended to disassemble and clean it once every 100 rounds of use. Generally, use lubricating oil for cleaning and maintenance to extend the service life
⒄: When the nail is not sounding, be careful not to directly touch any part of the nail body with your hands when retracting the nail. If there is any unexploded residual explosive shell that cannot be withdrawn, you can only use external objects to pull it out
⒅: Do not use nail drivers in flammable and explosive areas
Specifications: Material: Durable plastics+metal construction Product Size: Compact at 335mm / 13.2in length Usage: Ideal for home DIY projects Type: Manual Mini Steel Nailer Features: Low Noise Operation, 5-speed adjustable power, Strong Penetrating Accessories: Includes a plastic box, cleaning brush, protective glasses, and an accessories package Features: |Best All Around Nail Gun Size|Powder Nail Gun|Different Nail Gun| **Efficient and User-Friendly Design** The Mini Manual Steel Nail Gun is a versatile tool designed for a wide range of DIY projects, from floor and roof frames to deck building. Its compact size and lightweight design make it easy to handle and maneuver, ensuring that even the most intricate tasks can be completed with precision. The ergonomic anti-slip handle provides a comfortable grip, reducing hand fatigue during prolonged use. The nail gun's low noise operation is a testament to its efficiency, allowing for uninterrupted work without disturbing others. **Advanced Performance and Versatility** This nail gun is not just about convenience; it's about performance. The 5-speed adjustable feature allows users to tailor the power output to the specific task at hand, ensuring that nails are driven with the right amount of force for optimal penetration. The robust metal construction and high-temperature heat-treated spring guarantee durability and consistent performance, while the dual silencer and automatic slag discharge hole contribute to a safer and more efficient operation. Whether you're a professional contractor or a DIY enthusiast, this nail gun is an indispensable tool for any home improvement project. **Safety and Convenience** Safety is paramount with this nail gun, which is why it comes with a comprehensive accessories package including protective glasses and a cleaning brush. The automatic slag discharge hole ensures that the gun remains cool and safe to handle, while the ergonomic design minimizes the risk of accidents. The nail gun is designed for easy maintenance, with a clear cleaning cycle and standard maintenance interval to keep it in top condition. With its lightweight design and portability, this nail gun is a reliable companion for any home improvement task, ensuring that your projects are completed efficiently and safely.
